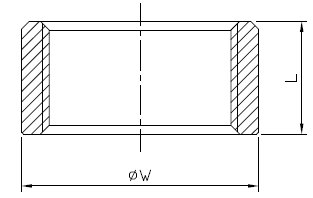

Coupling/Half Coupling BSP

Coupling
Half Coupling

3"		2-1/2"		2"		1-1/2"		1-1/4"		1"		3/4"		1/2"		3/8"		1/4"		SIZE
mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	SIZE
69	2.7	65	2.6	55	2.2	46	1.8	47	1.8	43	1.7	35	1.4	33	1.3	25	0.98	25	0.98	L
95	3.7	83	3.3	67	2.6	54	2.1	48	1.9	39	1.5	32	1.2	26	1.02	21.5	0.85	18	0.71	W

2-1/2"(PS)		2"		1-1/2"		1-1/4"		1"		3/4"		1/2"		1/4"		SIZE
mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	SIZE
31.5	1.24	26.5	1.04	23	0.91	22.5	0.89	19.5	0.77	18.5	0.73	16.5	0.65	12	0.47	L
83	3.27	66.5	2.62	54	2.13	48	1.89	39	1.54	31.5	1.24	26	1.02	18	0.71	W
