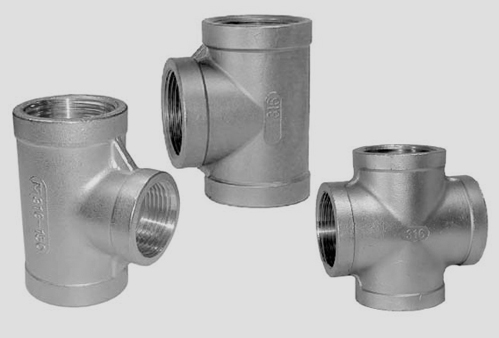

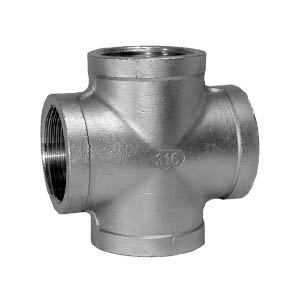

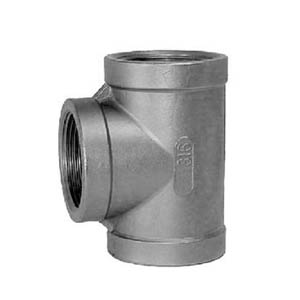

Tee/Reducing Tee/Cross

2-1/2"(PS)		2"		1-1/2"		1-1/4"		1"		3/4"		1/2"		1/4"		SIZE
mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	SIZE
66	2.6	53.5	2.11	44.5	1.75	42.5	1.67	35	1.38	30	1.18	27.5	1.08	19.5	0.77	A
87.5	3.44	67.6	2.66	56	2.2	49	1.93	39.5	1.56	32.2	1.27	25.5	1	18.5	0.73	B
129	5.08	107	4.21	88.5	3.48	85	3.35	70	2.76	60	2.36	55	2.17	39	1.54	L

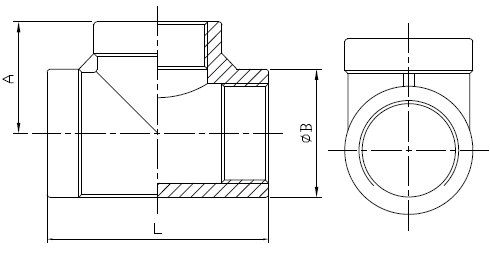

L		C		B		A		SIZE
mm	in	mm	in	mm	in	mm	in	SIZE
53.5	2.11	18.5	0.73	28	1.1	23	0.91	1/2"	1/4"
59	2.32	18.5	0.73	33	1.3	25.5	1	3/4"	1/4"
59	2.32	28	1.1	33	1.3	30.5	1.2	3/4"	1/2"
70	2.76	18.5	0.73	40.5	1.59	30	1.18	1"	1/4"
70	2.76	27	1.06	40.5	1.59	34	1.34	1"	1/2"
70	2.76	33	1.3	40.5	1.59	36	1.42	1"	3/4"
86	3.39	28	1.1	49	1.93	38	1.5	1-1/4"	1/2"
86	3.39	33	1.3	49	1.93	40.5	1.59	1-1/4"	3/4"
89	3.5	28	1.1	56	2.2	42	1.65	1-1/2"	1/2"
89	3.5	33	1.3	56	2.2	44	1.73	1-1/2"	3/4"
89	3.5	40.5	1.59	56	2.2	46	1.81	1-1/2"	1"
89	3.5	49	1.93	56	2.2	49	1.93	1-1/2"	1-1/4"

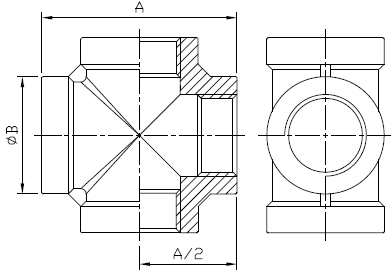

2-1/2"(PS)		2"		1-1/2"		1-1/4"		1"		3/4"		1/2"		1/4"
mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in
137	5.4	108	4.25	89.8	3.54	85.6	3.37	73.2	2.88	63.4	2.5	55	2.17	38	1.5
89.2	3.51	69.2	2.72	57.1	2.25	50.4	1.98	42	1.65	33.7	1.33	28.8	1.13	18.5	0.73
