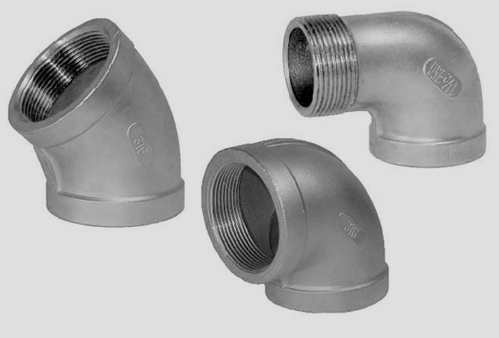

Elbow

Order Now

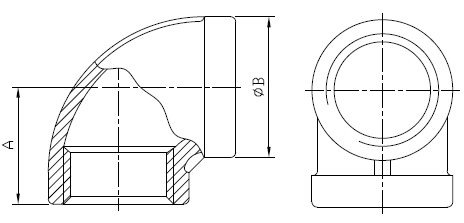

"2-21/2 "2 "1-1/2 "1-1/4 "1 "3/4 "1/2 "1/4 SIZE
mm in mm in mm in mm in mm in mm in mm in mm in
69 2.72 54 2.13 45 1.77 43 1.69 35 1.38 30 1.18 27 1.06 19 0.75 A
81.3 3.2 67.4 2.65 54.9 2.16 48.5 1.91 41.2 1.62 31.6 1.24 25.5 1 18.8 0.74 B

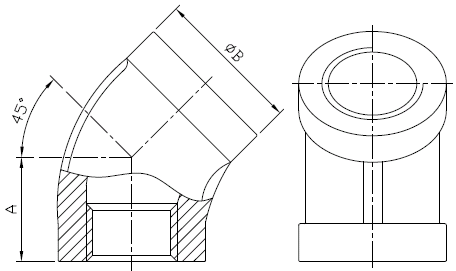

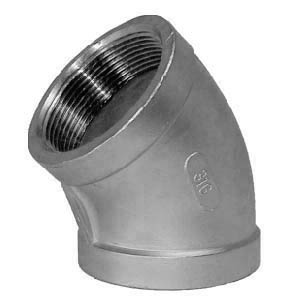

"2-2/12 "2 "1-1/2 "1-1/4 "1 "3/4 "1/2 "1/4 SIZE
mm in mm in mm in mm in mm in mm in mm in mm in
46 1.81 39 1.54 34 1.34 31 1.22 27 1.06 24 0.94 20 0.79 16 0.63 A
88 3.46 70 2.76 57 2.24 48.4 1.91 42 1.65 31.6 1.24 29 1.14 18.4 0.72 B

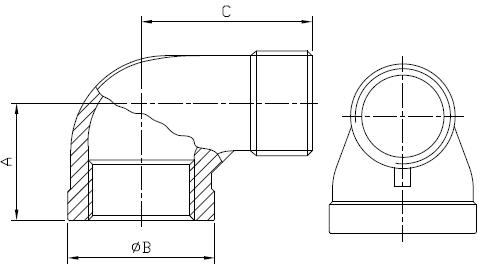

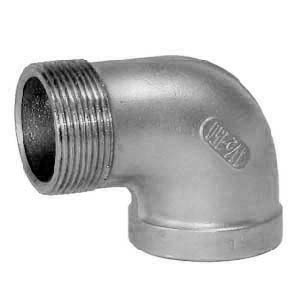

"2-21/2 "2 "1-1/2 "1-1/4 "1 "3/4 "1/2 "1/4 SIZE
mm in mm in mm in mm in mm in mm in mm in mm in
66 2.6 57.5 2.26 47 1.85 43 1.69 37 1.46 33.5 1.32 29 1.14 21.5 0.85 A
87.4 3.44 69.5 2.74 56.5 2.22 51 2.01 41 1.61 34.3 1.35 28.4 1.12 20.5 0.81 B
93 3.66 77.5 3.05 67 2.64 62 2.44 55 2.17 48 1.89 41 1.61 30.8 1.21 C
