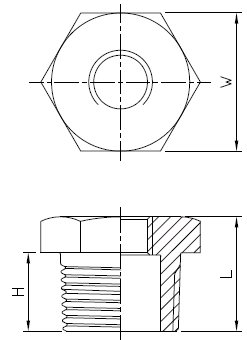

| W | L | H | SIZE | ||||
| mm | in | mm | in | mm | in | ||
| 25 | 0.98 | 22 | 0.87 | 16 | 0.63 | 1/2" | 1/4" |
| 25 | 0.98 | 22 | 0.87 | 16 | 0.63 | 1/2" | 3/8" |
| 29.5 | 1.16 | 23 | 0.91 | 17 | 0.67 | 3/4" | 1/4" |
| 29.5 | 1.16 | 23 | 0.91 | 17 | 0.67 | 3/4" | 1/2" |
| 36.5 | 1.44 | 27 | 1.06 | 20 | 0.79 | 1" | 1/4" |
| 36.5 | 1.44 | 27 | 1.06 | 20 | 0.79 | 1" | 1/2" |
| 36.5 | 1.44 | 27 | 1.06 | 20 | 0.79 | 1" | 3/4" |
| 50 | 1.97 | 30 | 1.2 | 22 | 0.87 | 1-1/2" | 1" |
| 62 | 2.44 | 33.5 | 1.3 | 23.5 | 0.93 | 2" | 1/2" |
| 62 | 2.44 | 33.5 | 1.3 | 23.5 | 0.93 | 2" | 3/4" |
| 62 | 2.44 | 33.5 | 1.3 | 23.5 | 0.93 | 2" | 1" |

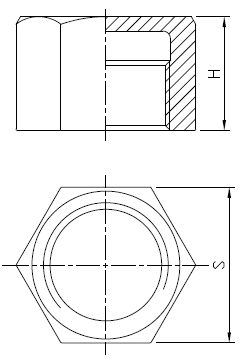

| S | H | SIZE | ||
| mm | in | mm | in | |
| 17.5 | 0.69 | 17 | 0.67 | 1/4" |
| 25.5 | 1 | 20 | 0.79 | 1/2" |
| 30.1 | 1.19 | 20.4 | 0.8 | 3/4" |
| 37.4 | 1.47 | 27.1 | 1.07 | 1" |
| 47 | 1.85 | 30 | 1.18 | 1-1/4" |
| 53.2 | 2.09 | 30.3 | 1.19 | 1-1/2" |
| 66 | 2.6 | 32.3 | 1.27 | 2" |
