D (ארוך) |
D (קצר) |
C | B | A | SIZE/מ"מ |
28.6 | 12.7 | 25.2 | 12.75 | 9.45 | "1/2 |
28.6 | 12.7 | 25.2 | 19.05 | 15.75 | "3/4 |
28.6 | 12.7 | 50.5 | 25.4 | 22.2 | "1.0 |
28.6 | 12.7 | 50.5 | 38.1 | 34.9 | "1.5 |
28.6 | 12.7 | 64.0 | 50.8 | 47.6 | "2.0 |
28.6 | 12.7 | 77.5 | 63.5 | 60.3 | "2.5 |
28.6 | 12.7 | 91.0 | 76.2 | 73.0 | "3.0 |
28.6 | 15.8 | 119.0 | 101.6 | 97.6 | "4.0 |
28.6or38.1 | 21.5 | 166.8 | 152.5 | 146.8 | "6.0 |
28.6or38.1 | 21.5 | 217.7 | 203.3 | 197.6 | "8.0 |
28.6or38.1 | 21.5 | 268.5 | 254.1 | 247.2 | "10 |
|
B | A | SIZE/מ"מ |
5 | 25.2 | "1/2 |
5 | 25.2 | "3/4 |
6.3 | 50.5 |
"1.5-"1 |

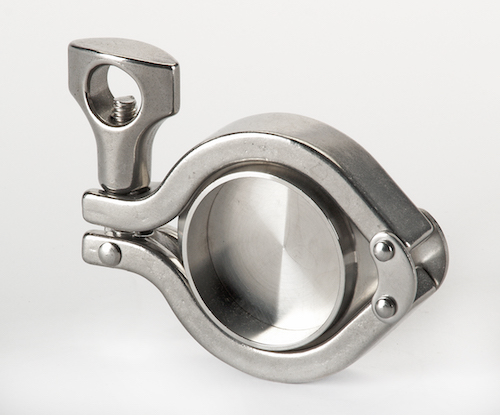

6.3 | 61.0 | "2.0 |
6.3 | 77.5 | "2.5 |
6.3 | 91.0 | "3.0 |
7.9 | 119.0 | "4.0 |
11.1 | 166.8 | "6.0 |
11.1 | 217.7 | "8.0 |
11.1 | 268.5 | "10.0 |
B | A | SIZE/מ"מ |
28 | 20 |
"3/4- "1/2 |
53.6 | 43.6 |
"1.5-"1 |
67 | 57 | "2.0 |
80.6 | 70.6 | "2.5 |
94 | 84 | "3.0 |
122 | 112 | "4.0 |
170 | 155 | "6.0 |
220.8 | 205 | "8.0 |
276 | 260 | "10.0 |
|
B | A | SIZE/מ"מ |
6.4 | 25 | DN10 |
6.4 | 25 | DN15 |
6.4 | 50.5 | DN25 |
6.4 | 50.5 | DN40 |
6.4 | 64 | DN50 |
6.4 | 77.5 | DN65 |
6.4 | 91 | DN80 |
7.9 | 119 | DN100 |
