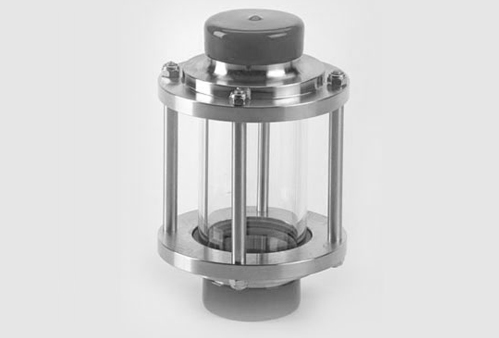

.jpg "מראה זרימה עם קצוות לריתוך 304/316 אטם פנימי EPDM")
|
G |
F |
E |
D |
C | B | A | SIZE/מ"מ |
| 26 | 32 | 25 | 22.5 | 79 | 80 | 148 | DN25 |
| 50 | 60 | 40 | 37 | 90 | 80 | 160 | DN40 |
| 50 | 60 | 51 | 48.0 | 105 | 80 | 160 | DN50 |
| 75.4 | 85 | 70 | 66 | 125 | 80 | 162 | DN65 |
| 75.4 | 85 | 76 | 72.0 | 125 | 80 | 162 | DN80 |
| 100 | 110 | 104 | 100 | 157 | 80 | 168 | DN100 |
 (1).jpg)
|
G |
F |
E |
D |
C | B | A | SIZE/מ"מ |
| 26 | 32 | 25.4 | 22.1 | 79 | 80 | 148 | "1 |
| 34 | 40 | 38.1 | 34.9 | 85 | 80 | 156 | "1.5 |
| 50 | 60 | 50.8 | 47.5 | 105 | 80 | 160 | "2 |
| 65 | 75 | 63.5 | 60.2 | 112 | 80 | 160 | "2.5 |
| 75.4 | 85 | 76.2 | 72.2 | 125 | 80 | 162 | "3 |
| 100 | 110 | 101.6 | 97.6 | 157 | 80 | 168 | "4 |
