אוליבה

אוליבה

הזמן עכשיו

אוליבה

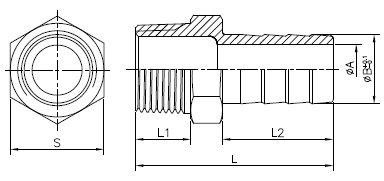

SIZE 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
mm in mm in mm in mm in mm in mm in mm in mm in mm in mm in mm in mm in
A 3 0.12 4 0.16 5 0.2 7 0.28 15 0.59 19.5 0.77 26.5 1.04 33.5 1.32 44 1.73 54 2.13 68 2.68 91 3.58
B 6 0.24 8 0.31 10 0.39 13 0.51 20 0.79 25 0.98 32 1.26 40 1.57 51.5 2.03 63.5 2.5 76.5 3.01 102 4.02
L1 10 0.39 11.5 0.45 13 0.51 15 0.59 15.5 0.61 19 0.75 22 0.87 22 0.87 22.5 0.89 29.5 1.16 27 1.06 30.5 1.2
L2 19 0.75 25 0.98 29.5 1.16 33 1.3 34 1.34 39 1.54 37 1.46 47.5 1.87 53.5 2.11 65 2.56 68 2.68 74 2.91
L 34 1.34 43 1.69 49 1.93 56.5 2.22 60 2.36 69 2.72 70 2.76 80 3.15 88 3.46 108 4.23 110 4.33 120 4.72
S 12.5 0.49 15 0.59 19 0.75 23 0.91 28 1.1 37 1.46 45 1.77 50 1.97 62 2.44 79 3.11 91.5 3.6 117 4.61

Tolerance: +0.5mm(1/8"~2")  +0.8mm(2-1/2"~4")
